CENTURION-R 2014
44
TECHNICAL INFORMATION
All sizes in mm.
MDF VENEERED DOOR FRAME
Quarter round
(convex)
Architrave
DIMENSIONS OF THE BLOCK FRAMES MU/U
FOR SINGLE LEAF DOORS
SIZE
SIZE OF THE FRAME
60
70
80
90
100
So
603
703
803
903
1003
Sw 625
725
825
925
1025
Sz
679
779
879
979
1079
Sm 699
799
899
999
1099
Ho
2017
Hw
2028
Hz
2055
Hm
2075
DIMENSIONS OF THE BLOCK MU/U FRAMES
FOR STANDARD DOUBLE DOORS
SIZE
DOUBLE DOOR LEAVES’
SIZES
STANDARD DIMENSIONS
Sw So
Sz
Sm Ho Hw Hz
Hm
120
60+60
1272 1251 1327 1347
2017 2028 2055 2075
130
70+60
1372 1351 1427 1447
140
80+60
1472 1451 1527 1547
150
90+60
1572 1551 1627 1647
140
70+70
1472 1451 1527 1547
150
80+70
1572 1551 1627 1647
160
90+70
1672 1651 1727 1747
160
80+80
1672 1651 1727 1747
170
90+80
1772 1751 1827 1847
180
90+90
1872 1851 1927 1947
Sz
So
Sm
Sw
Sz
Sw
So
Sm

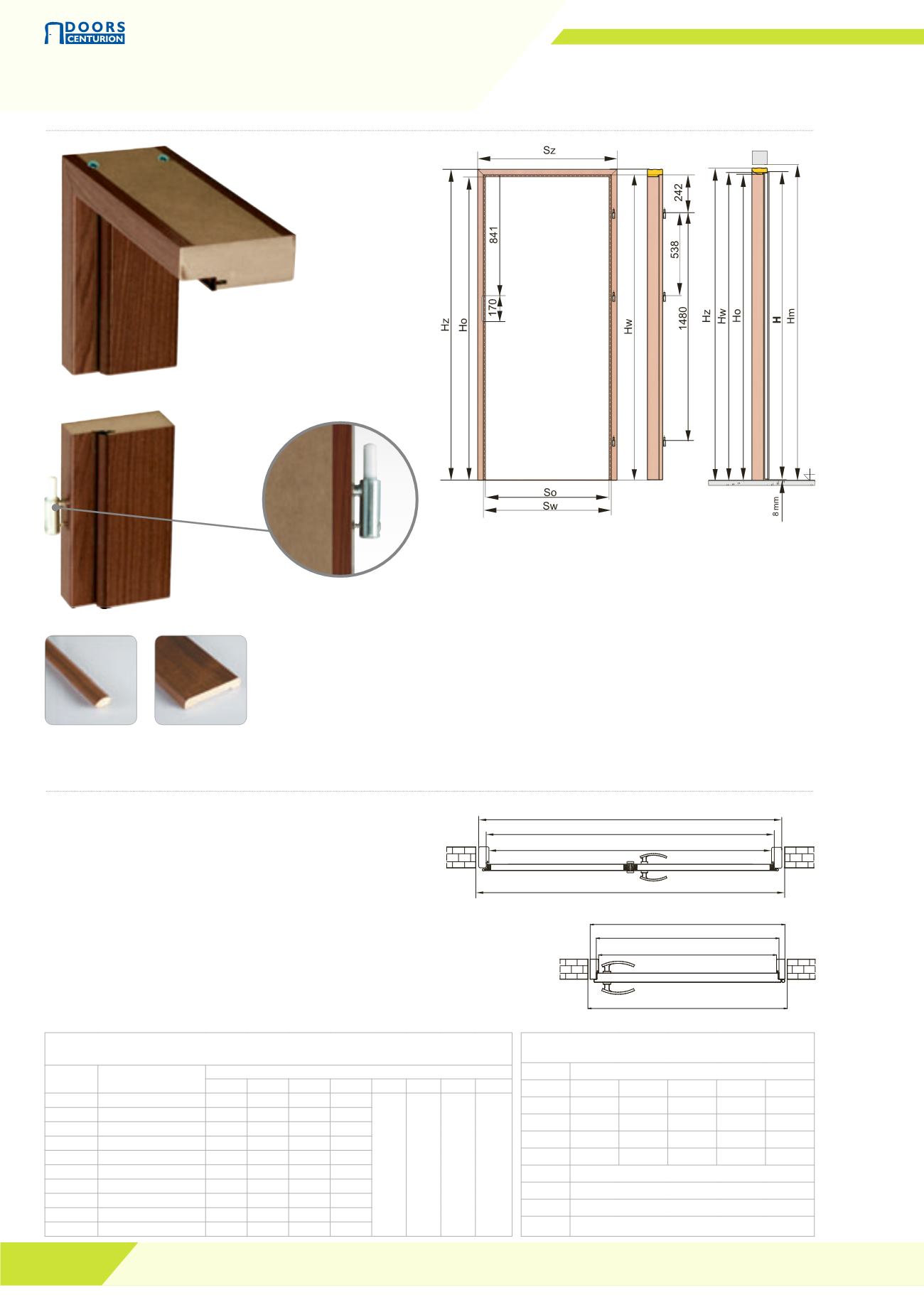

BLOCK FRAMES – DOOR FRAME MDF MU/U TYPE (90x38mm)
CONSTRUCTION MU/U
MDF block door frame (90x38mm) MU/U type
consists of:
Horizontal element (lintel) and two vertical
elements (jambs) made from MDF
seal
mounting kit
strike plate
anuba-type hinges
MU/U frame is manufactured and delivered in
elements designed for self-assembly on site
When preparing wall opening for the door frame, please include space for installation and for injection of PUR foam
(please add ~20mm to both total external width and height of the required door frames’ size).
level of the finished floor
