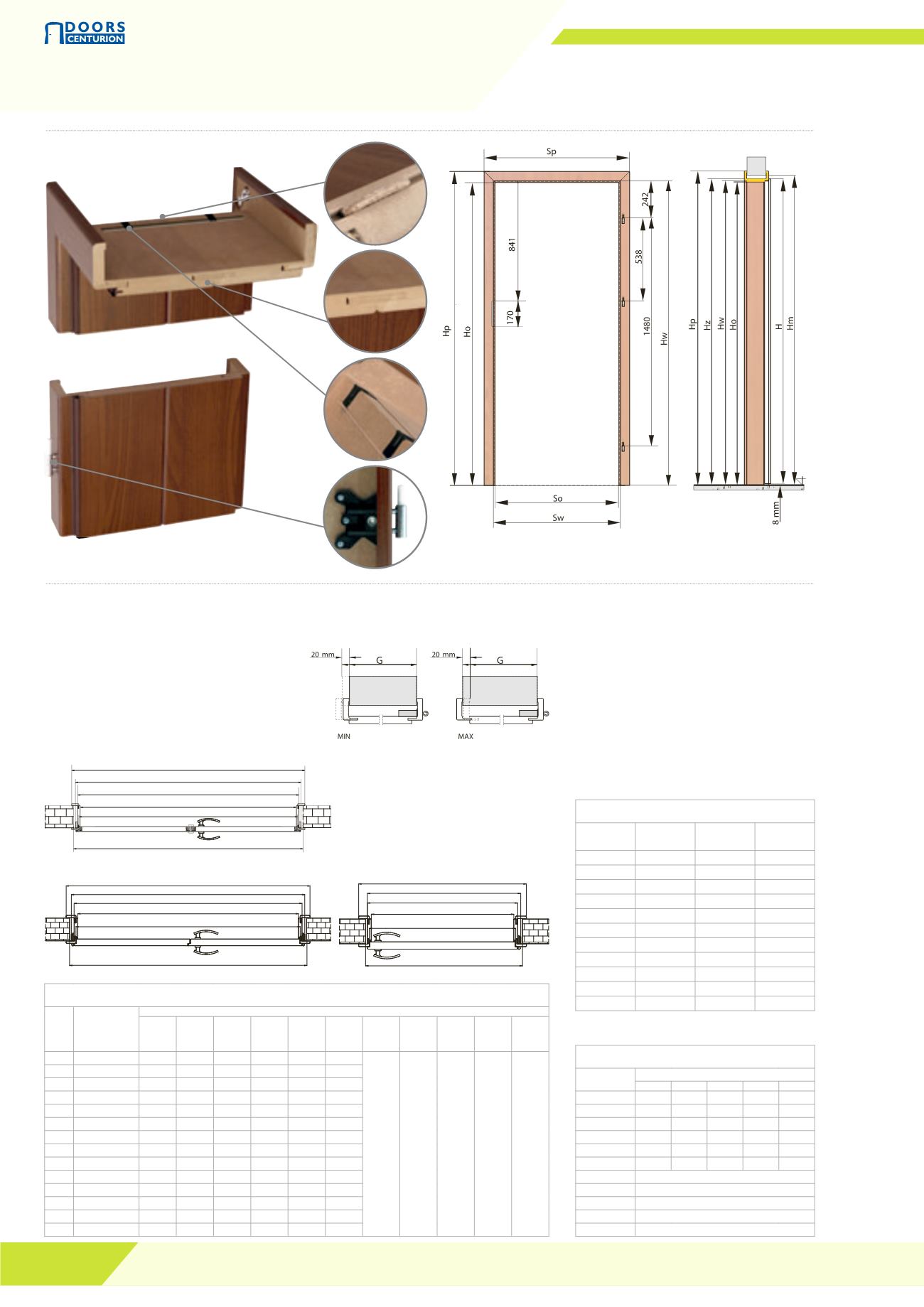

ADJUSTABLE FRAMES – SEGMENTED VENEERED OR LACQUERED DOOR FRAME SW-TYPE
CONSTRUCTION
LEGEND FOR THE DRAWING:
Main regulated elements upper horizontal (lintel) and
two vertical (beams) made from MDF
covering profiles
angle connectors of corner elements
seal
mounting kit
strike plate
pintle hinges with block
SW frame is manufactured and delivered in elements
designed for self-assembly on site
So - width of the frame opening
Sw - width of the frame opening including rebate
Sz - outer width of the frame
Sc - total outer width of the frame
Sp - total width including covering profile
Sm - recommended width of the wall opening
Ho - height of the frame opening
Hw - height of the frame opening including rebate
Hz - outer height of the frame
Hp - total height of the frame including covering
profile
Hm - recommended height of the wall opening
When preparing wall opening for the door frame, please include space for installation and for injection of PUR foam
(please add ~20mm to both total external width and height of the required door frames’ size).
DIMENSIONS OF THE SW ADJUSTABLE FRAMES
FOR SINGLE LEAF DOORS
DIMENSIONS
SIZE OF THE FRAME
60 70 80 90 100
So
603 703 803 903 1003
Sw 625 725 825 925 1025
Sz
647 747 847 947 1047
Sc
664 764 864 964 1064
Sp
745 845 945 1045 1145
Sm 684 784 884 984 1084
Ho
2018
Hw
2029
Hz
2040
Hp
2089
Hm
2060
DIMENSIONS OF THE SW
ADJUSTABLE FRAMES
SIZE SYMBOL
WALL
THICKNESS
MM
SIZE SYMBOL
WALL
THICKNESS
MM
A
75-95
1
300-320
B
95-115
2
320-340
C
120-140
3
340-360
D
140-160
4
360-380
E
160-180
5
380-400
F
180-200
6
400-420
G
200-220
7
420-440
H
220-240
8
440-460
I
240-260
9
460-480
J
260-280
0
480-500
K
280-300
DIMENSIONS OFTHE SWADJUSTABLE FRAMES
FOR STANDARD DOUBLE DOORS
SIZE
DOUBLE DOOR
LEAVES’SIZES
STANDARD DIMENSIONS
Sw So Sz
Sc
Sp Sm Hw Ho Hz
Hp Hm
100 60+40
1072 1050 1094 1128 1192 1148
2029 2018 2040 2089 2060
110 70+40
1172 1150 1194 1228 1292 1248
120 80+40
1272 1250 1294 1328 1392 1348
130 90+40
1372 1350 1394 1428 1492 1448
120 60+60
1272 1250 1294 1328 1392 1348
130 70+60
1372 1350 1394 1428 1492 1448
140 80+60
1472 1450 1494 1528 1592 1548
150 90+60
1572 1550 1594 1628 1692 1648
140 70+70
1472 1450 1494 1528 1592 1548
150 80+70
1572 1550 1594 1628 1692 1648
160 90+70
1672 1650 1694 1728 1792 1748
160 80+80
1672 1650 1694 1728 1792 1748
170 90+80
1772 1750 1794 1828 1892 1848
180 90+90
1872 1850 1894 1928 1992 1948
Sp
Sc
Sz
So
Sw
Sm
Sp
Sc
Sz
So
Sw
Sm
Sp
Sc
Sz
So
Sw
Sm
level of the finished floor
