50 / 56
CENTURION-R 2014
50
SIZES OF DOOR LEAVES FOR DOUBLE DOOR
SIZE
EXAMPLE
OF LEAVES
COMPOSITION
A
B
B1
STANDARD
SIZES
S
S1
H
100
60+40
644 457 444 1092 1066 2030
110
70+40
744 457 444 1192 1166 2030
120
80+40
844 457 444 1292 1266 2030
130
90+40
944 457 444 1392 1366 2030
120
60+60
644 657 644 1292 1266 2030
130
70+60
744 657 644 1392 1366 2030
140
80+60
844 657 644 1492 1466 2030
150
90+60
944 657 644 1592 1566 2030
140
70+70
744 757 744 1492 1466 2030
150
80+70
844 757 744 1592 1566 2030
160
90+70
944 757 744 1692 1666 2030
160
80+80
844 857 844 1692 1666 2030
170
90+80
944 857 844 1792 1766 2030
180
90+90
944 957 944 1892 1866 2030
SIZES OF SINGLE DOORS
DIMENSIONS
SIZE OF DOOR LEAF
60 70 80 90 100
S
644 744 844 944 1044
S1
618 718 818 918 1018
H
2030 2030 2030 2030 2030
1480
S1
B
S
A
B1
A

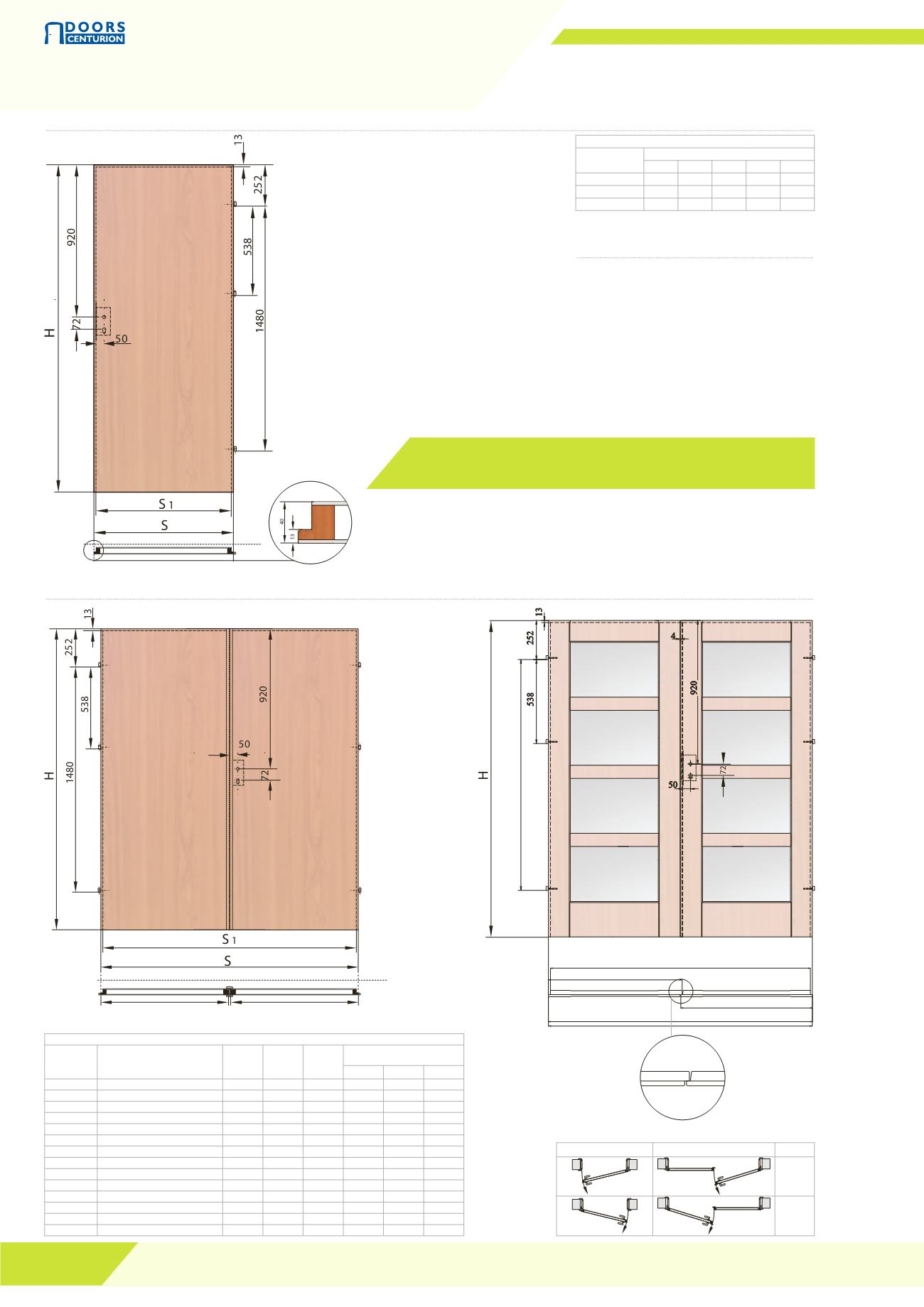

DIMENSIONS OF THE DOOR LEAVES
SINGLE DOOR
DOUBLE DOOR WITH CLOSING TRIM IN STANDARD TECHNOLOGY
(EXCEPT FOGO MODEL)
DOUBLE DOOR IN SOFT FRAME TECHNOLOGY
(SIZES 120-180 AND SIDELIGHT IN SIZE 40) AND SOFT TECHNOLOGY
LEGEND FOR THE DRAWING
A – width of the active door leaf
B – width of the passive door leaf in SOFT FRAME
technology
B1 – width of the passive door leaf with closing trim
S – width of the door leaf
S1 – width of the door leaf at rebated side
H – height of the door leaf
ATTENTION!
ARCHITRAVES AND QUARTER-ROUNDS ARE COMING IN SETS WITH ELEMENTS FOR SELF
CUTTING IN SIZE UP TO 90 (09 CODE) AND UP TO 180 (99 CODE).
20% SURCHARGE FOR DOUBLE DOOR SETS.
SINGLE DOOR
DOUBLE DOOR
LEFT
RIGHT
In double door with closing trim the recommended handle escutcheon plate width is 40mm.
Recommended asymmetric pin tumbler lock size 30/35.
