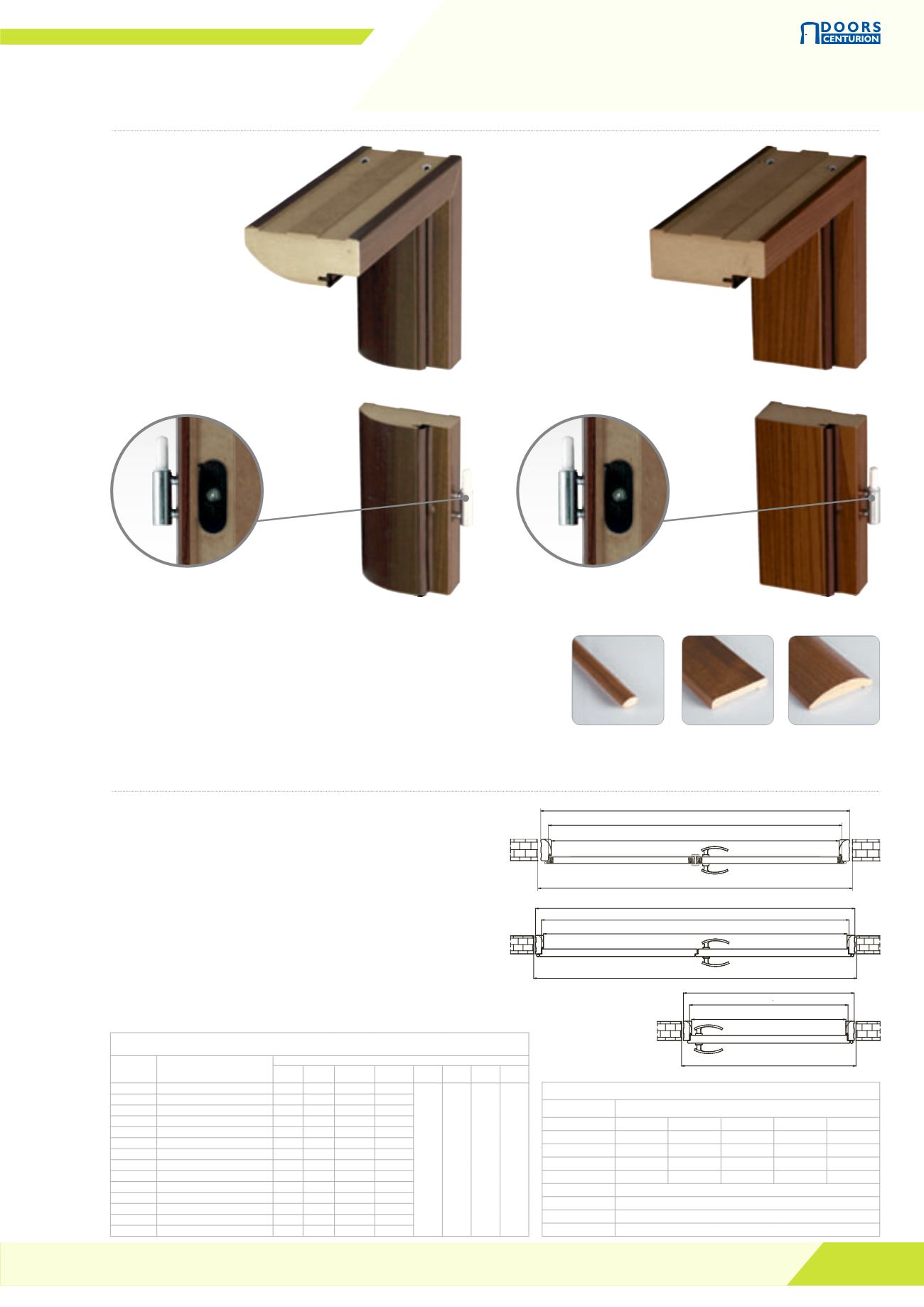

BLOCK FRAMES – DOOR FRAMES Z-TYPE AND Q-TYPE (100x43mm)
CONSTRUCTION„Z”i„Q”
Horizontal element (lintel) and two vertical ele-
ments (jambs) made from MDF or wooden lath
(Q-type elements have round profile)
seal
mounting kit
strike plate
pintle hinges with block
hinge nest
Z/MF or Q/MQ frame is manufactured and de-
livered in elements designed for self-assembly
on site
When preparing wall opening for the door frame, please include space for installation and for injection of PUR foam
(please add ~20mm to both total external width and height of the required door frames’ size).
MDF OR WOODEN VENEERED DOOR FRAME (Z/MF OR Z/DF)
MDF VENEERED DOOR FRAME (Q/MQ)
QUARTER-ROUND
(CONVEX)
ARCHITRAVE Q
ARCHITRAVE
DIMENSIONS OF A BLOCK DOOR FRAME FOR SINGLE LEAF DOOR
DIMENSIONS
DOOR FRAMES’DIMENSIONS (in mm)
60
70
80
90
100
So
603
703
803
903
1003
Sw
625
725
825
925
1025
Sz
689
789
889
989
1089
Sm
709
809
909
1009
1109
Ho
2017
Hw
2028
Hz
2055
Hm
2075
DIMENSIONS FOR THE BLOCK FRAMES Z AND Q FOR DOUBLE DOORS IN STANDARD,
SOFT AND SOFT FRAME TECHNOLOGY
SIZE
DOUBLE DOOR LEAVES’
SIZES
STANDARD DIMENSIONS
Sw So Sz
Sm Ho Hw Hz Hm
100
60+40
1072 1050 1136 1156
2017 2028 2055 2075
110
70+40
1172 1150 1236 1256
120
80+40
1272 1250 1336 1356
130
90+40
1372 1350 1436 1456
120
60+60
1272 1250 1336 1356
130
70+60
1372 1350 1436 1456
140
80+60
1472 1450 1536 1556
150
90+60
1572 1550 1636 1656
140
70+70
1472 1450 1536 1556
150
80+70
1572 1550 1636 1656
160
90+70
1672 1650 1736 1756
160
80+80
1672 1650 1736 1756
170
90+80
1772 1750 1836 1856
180
90+90
1872 1850 1936 1956
