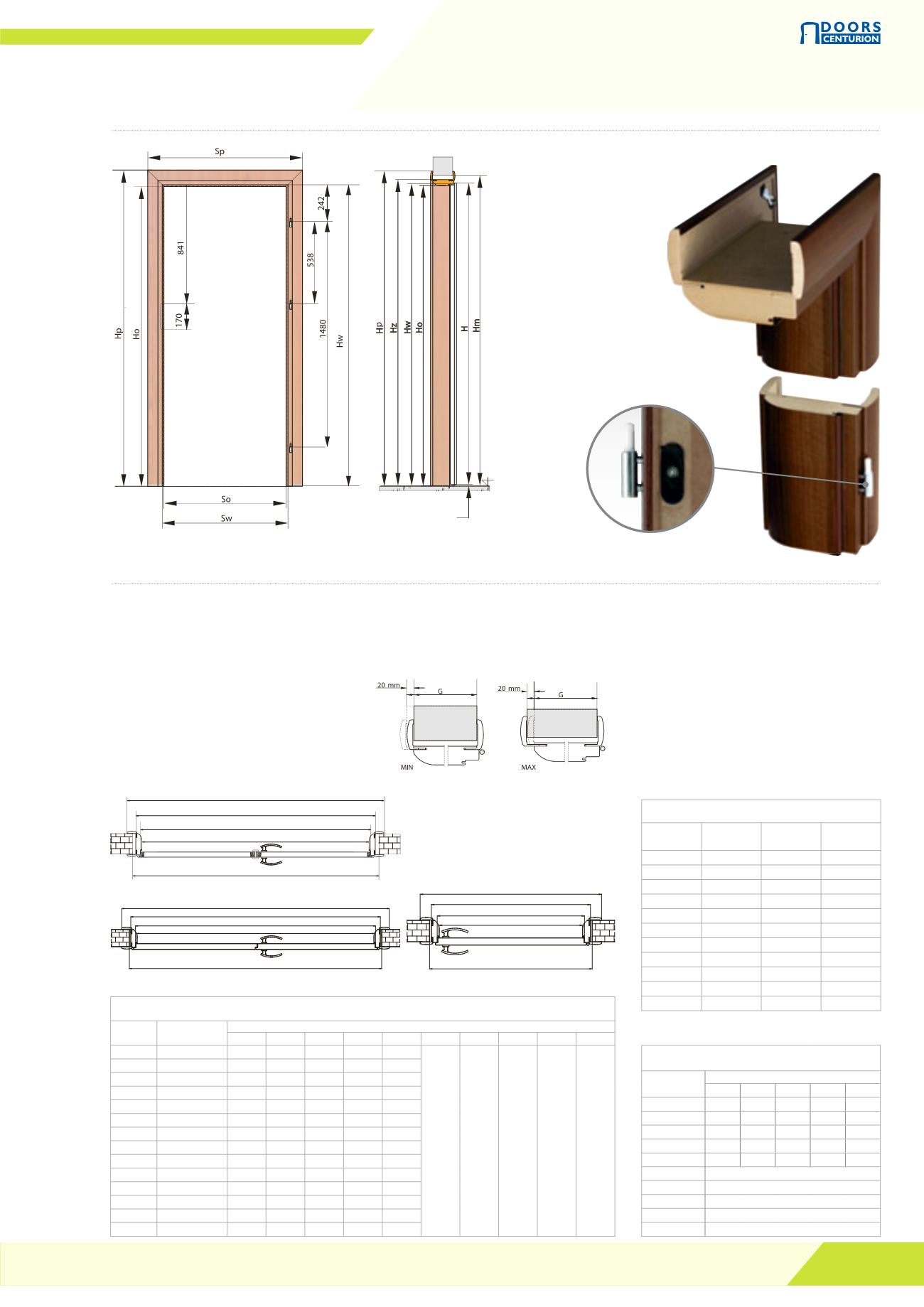

ADJUSTABLE FRAMES –DOOR FRAME LUX-TYPE
CONSTRUCTION
LEGEND FOR THE DRAWING:
Main regulated elements upper horizontal (lintel) and
two vertical (beams) made from MDF (elements of the
LUX-type frame have rounded profile)
covering profiles (in the LUX-type frame they have
round profile)
angle connectors of corner elements
seal
mounting kit
strike plate
pintle hinges with block
LUX frame is manufactured and delivered in elements
designed for self-assembly on site
So - width of the frame opening
Sw - width of the frame opening including rebate
Sz - outer width of the frame
Sc - total outer width of the frame
Sp - total width including covering profile
Sm - recommended width of the wall opening
Ho - height of the frame opening
Hw - height of the frame opening including rebate
Hz - outer height of the frame
Hp - total height of the frame including covering
profile
Hm - recommended height of the wall opening
When preparing wall opening for the door frame, please include space for installation and for injection of PUR foam
(please add ~20mm to both total external width and height of the required door frames’ size).
DIMENSIONS OF THE LUX
ADJUSTABLE FRAMES
SIZE SYMBOL
WALL
THICKNESS
MM
SIZE SYMBOL
WALL
THICKNESS
MM
A
75-95
1
300-320
B
95-115
2
320-340
C
120-140
3
340-360
D
140-160
4
360-380
E
160-180
5
380-400
F
180-200
6
400-420
G
200-220
7
420-440
H
220-240
8
440-460
I
240-260
9
460-480
J
260-280
0
480-500
K
280-300
DIMENSIONS OF THE LUX ADJUSTABLE FRAMES
FOR SINGLE LEAF DOORS
DIMENSIONS
SIZE OF THE FRAME
60 70 80 90 100
So
603 703 803 903 1003
Sw 625 725 825 925 1025
Sz
691 791 891 991 1091
Sp
816 916 1016 1116 1216
Sm 711 811 911 1011 1111
Ho
2018
Hw
2029
Hz
2061
Hp
2124
Hm
2081
DIMENSIONS OF THE LUX ADJUSTABLE FRAMES
FOR STANDARD DOUBLE DOORS
SIZE
DOUBLE DOOR
LEAVES’SIZES
STANDARD DIMENSIONS
So Sw Sz
Sp Sm Ho Hw Hz
Hp Hm
100
60+40
1072 1050 1138 1263 1158
2029 2018 2061 2124 2081
110
70+40
1172 1150 1238 1363 1258
120
80+40
1272 1250 1338 1463 1358
130
90+40
1372 1350 1438 1563 1458
120
60+60
1272 1250 1338 1463 1358
130
70+60
1372 1350 1438 1563 1458
140
80+60
1472 1450 1538 1663 1558
150
90+60
1572 1550 1638 1763 1658
140
70+70
1472 1450 1538 1663 1558
150
80+70
1572 1550 1638 1763 1658
160
90+70
1672 1650 1738 1863 1758
160
80+80
1672 1650 1738 1863 1758
170
90+80
1772 1750 1838 1963 1858
180
90+90
1872 1850 1938 2063 1958
Sp
Sz
Sw
So
Sm
Sp
Sz
Sw
So
Sm
Sp
Sz
Sw
So
Sm
distance from the door’s bottom
edge to the floor level 8mm
level of the finished floor
